How do I capture Canon logs on the CR-120/150

How do I capture Canon logs on the CR-120/150

The method of enabling Canon logging has changed for the CR-120/150. This method will not work on any other Canon scanners.
In order to capture logs on these scanners, you need to enable an option in the Ranger Canon-CR120CR150.ini file.
You can find this file at this location:
    C:\ProgramData\Silver Bullet Technology\Ranger\Scanner Plug-ins\Canon-CR120CR150\Canon-CR120CR150.ini
  1. Open the Canon-CR120CR150.ini file in a text editor and find the [General] section.

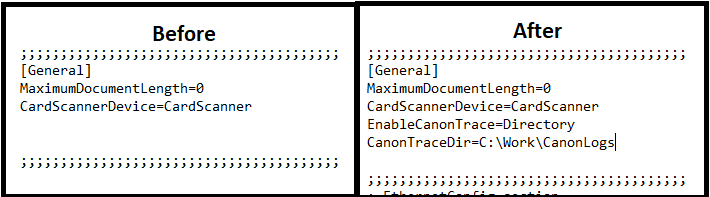

  2. In the [General] section, set the following options:
    1. EnableCanonTrace=Directory
    2. CanonTraceDir=[Your_Directory_Path]
      1. Be sure to replace [Your_Directory_Path] with the path to the directory you would like the logs to be stored in.
      2. Make sure that the directory already exists and that you have permission to edit it.
  3. These options may not be present in the Canon-CR120CR150.ini file by default, so you will need to add them. The options are case sensitive
  4. Once the options have been enabled in the .ini file, attempt to duplicate the issue. The logs will appear in the directory you specified.
